Dotpeenator™ CO15 Desktop Dot Peen Marking Machine
Computer-controlled desktop marking system with a large 205mm x 105mm working area for large metal labels and control panels.

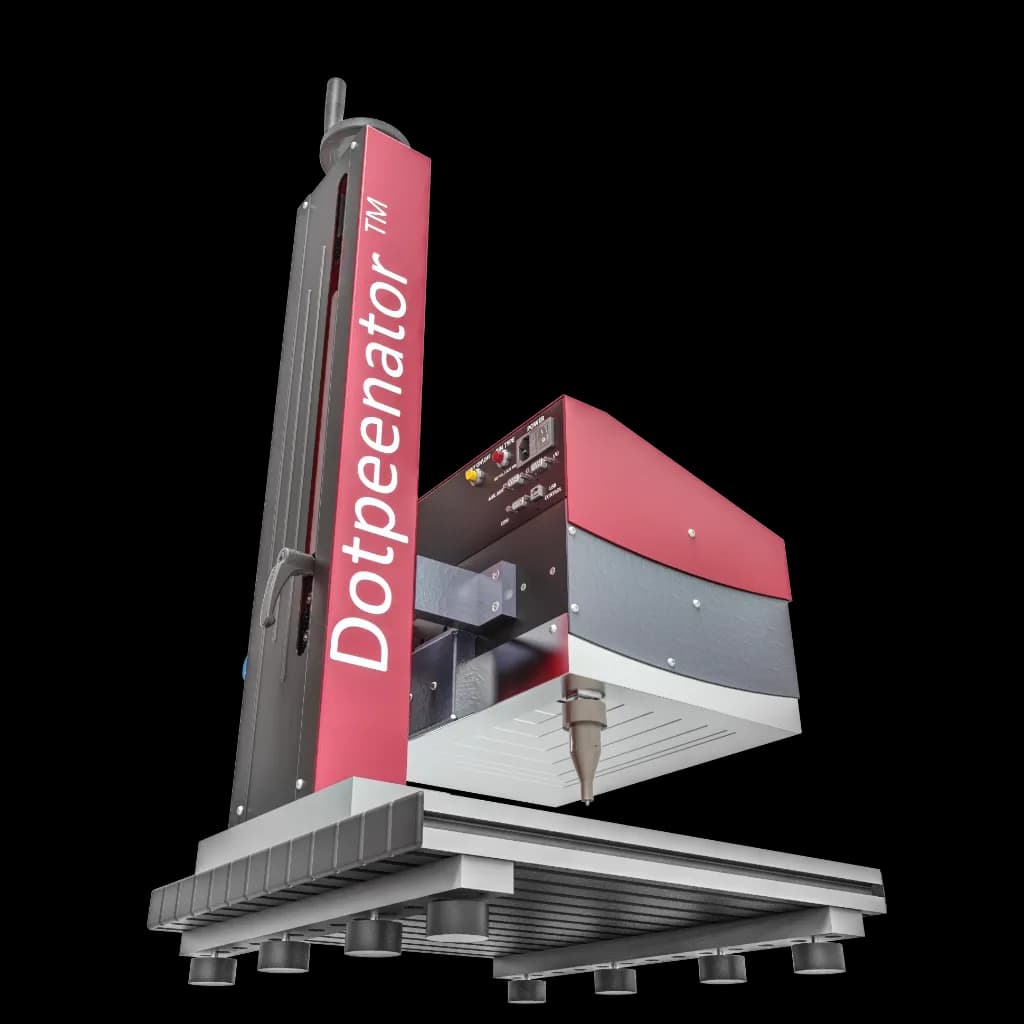

The Dotpeenator™ CO15 Desktop Dot Peen Marking Machine is a superior model of the computer-controlled (Windows PC) CO9, designed for industrial facilities requiring a larger working area. Its enlarged 205mm x 105mm marking window provides excellent solutions for permanently marking large-surface parts such as machine labels, identification plates, hydraulic valves, and control panels.

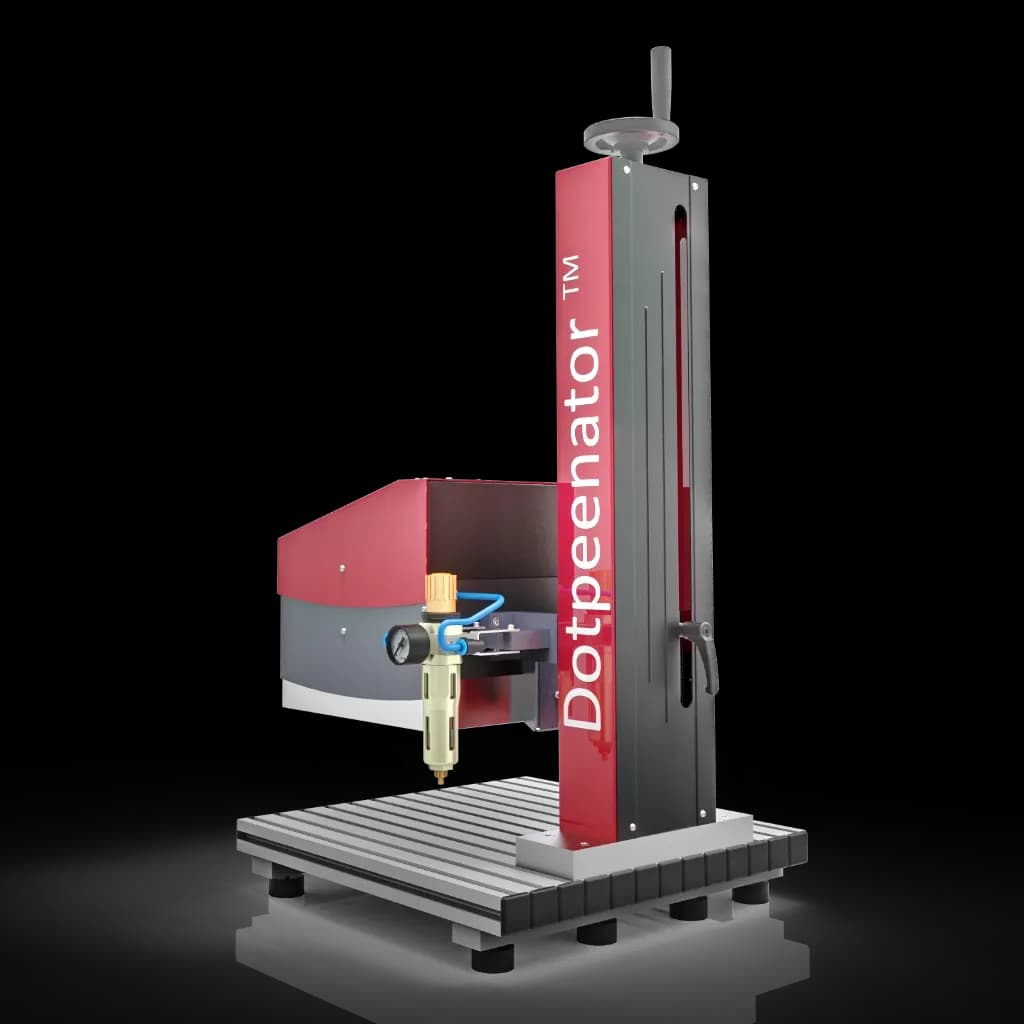

The machine's robust work table is made of high-quality Aluminum Sigma Profile, allowing for easy mounting of fixtures and support brackets. In the standard model, Z-axis adjustment according to part height is performed with a precise manual handwheel. For operational ease, the "Air On," "Start," and "Stop" control buttons are integrated directly onto the marking head. With the powerful and flexible DP6 control board, the Dotpeenator software has the infrastructure to additionally manage an external axis and air valve.
Key Features
- Marking Area: 205mm x 105mm wide working area ideal for large parts and labels
- Control System: DP6 software and hardware architecture with stable and powerful functions, integrated with an external Windows computer. On-Head Buttons: Air Opening, Start and Stop buttons located directly on the head, reducing dependence on the PC interface.
- Robust Chassis: Double hardened spindle structure, dust protection covers and Aluminum Sigma Profile work table.
- Wide Coding Capability: Alphanumeric characters, ascending/descending serial numbers, date, time, shift codes, chassis numbers and 2D QR code (DataMatrix) with vector graphics/logo marking.
Optional Features:
Depending on production line needs, a programmable automatic Z-axis, 80mm, 100mm or 125mm pneumatic or manual chuck indexing head for cylindrical and circular parts, automatic label feeding robot or extra X/Y axis integration can be added. In addition, the system can be transformed into a complete automatic label marking station by adding an external remote control box, foot pedal and special metal label clamps.
Marking Area
205 × 105 mm
Drive Type
Pneumatic + Electric
Weight
59 kg
Specifications
- Marking Area
- 205 × 105 mm
- Weight
- 59 kg
- Drive Type
- Pneumatic + Electric
- Control Type
- PC Software
- Portability
- Benchtop
Gallery
Applications
Aluminum, Steel, and Hard Plastic Marking
Smooth marking across a wide variety of materials, from stainless steel and aluminum to cast metals and hard plastics.
Dot Matrix and 2D DataMatrix Code Marking
High-contrast Dot Matrix and 2D DataMatrix marking solutions for Industry 4.0 and full traceability.
Variable Data, Shift Code, and Serial Number Marking
Dynamic marking of automatically incrementing serial numbers, real-time date/time, and shift codes on surfaces.
Logo, SVG Graphic, and SLF (Single Line Font) Marking
Fast, aesthetic, and professional marking with corporate logos, vector graphics, and single-line font technology.
Irregular Surface Marking
With Dotpeenator™ YT (High Tolerance) series marking pins, you can create smooth markings on surfaces with a certain degree of inclination or variable inclination.
Chassis Number (VIN) and Automotive Part Marking
Fully compliant with automotive standards (ISO), permanent and deep chassis number (VIN) marking solutions.
