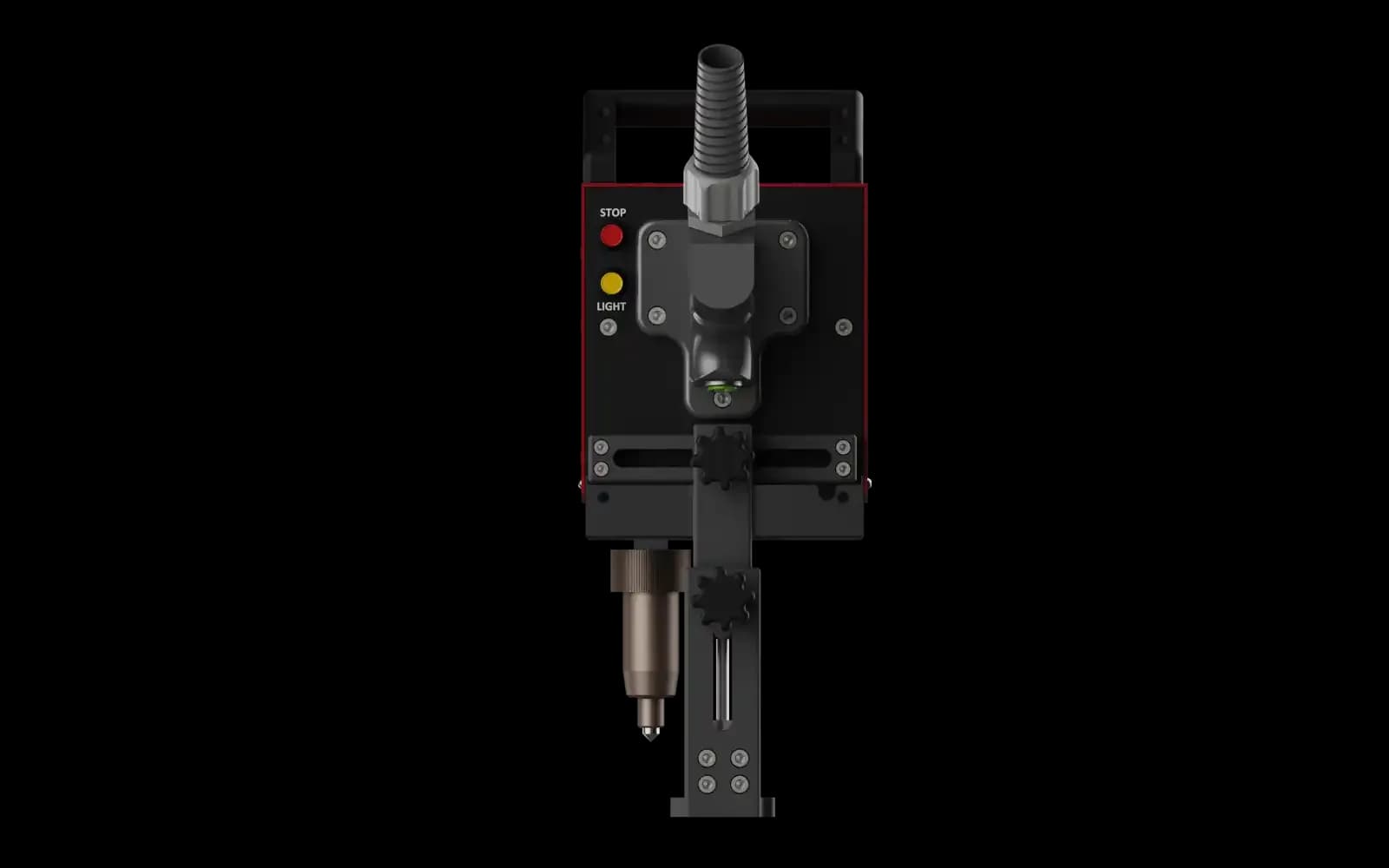

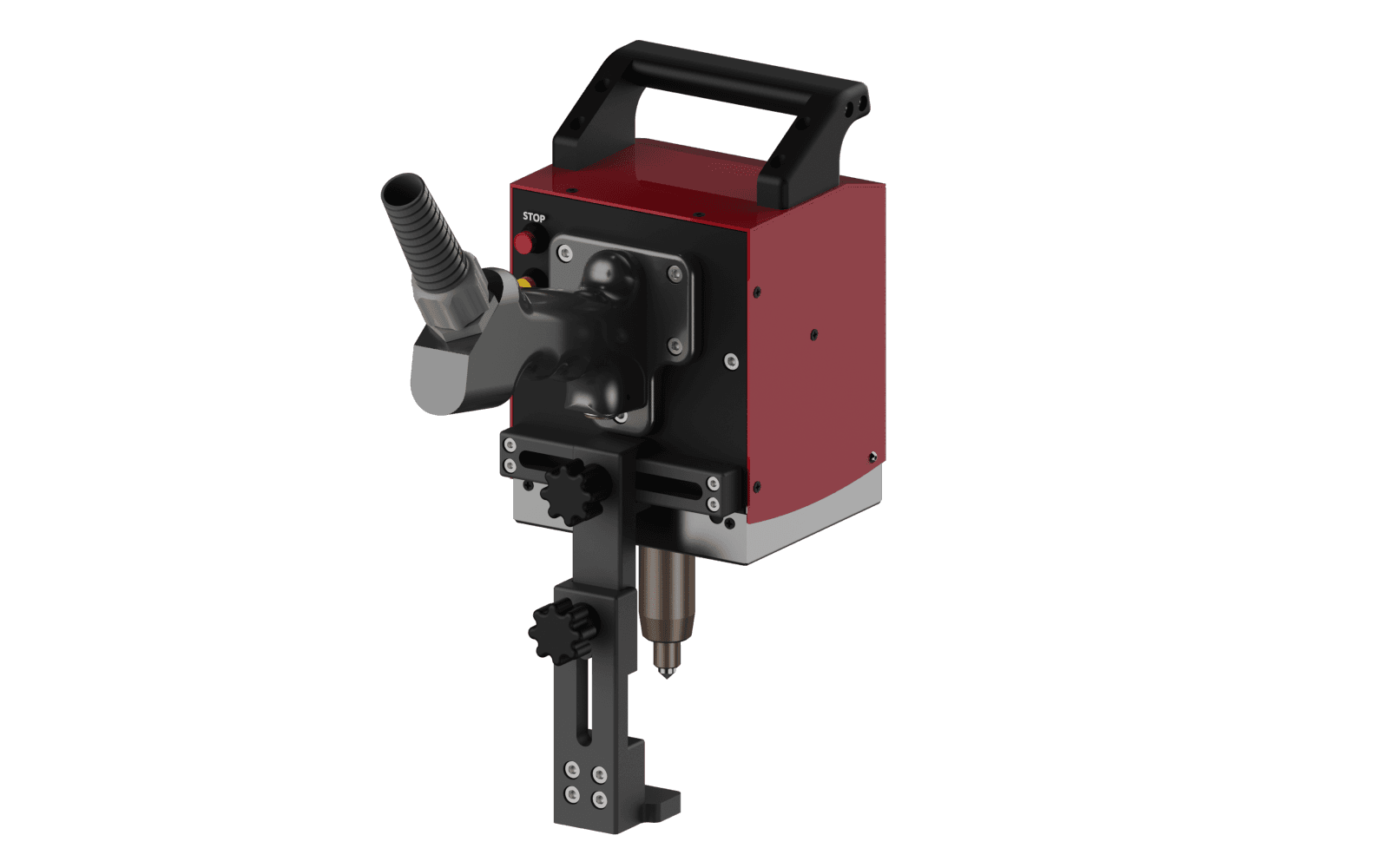

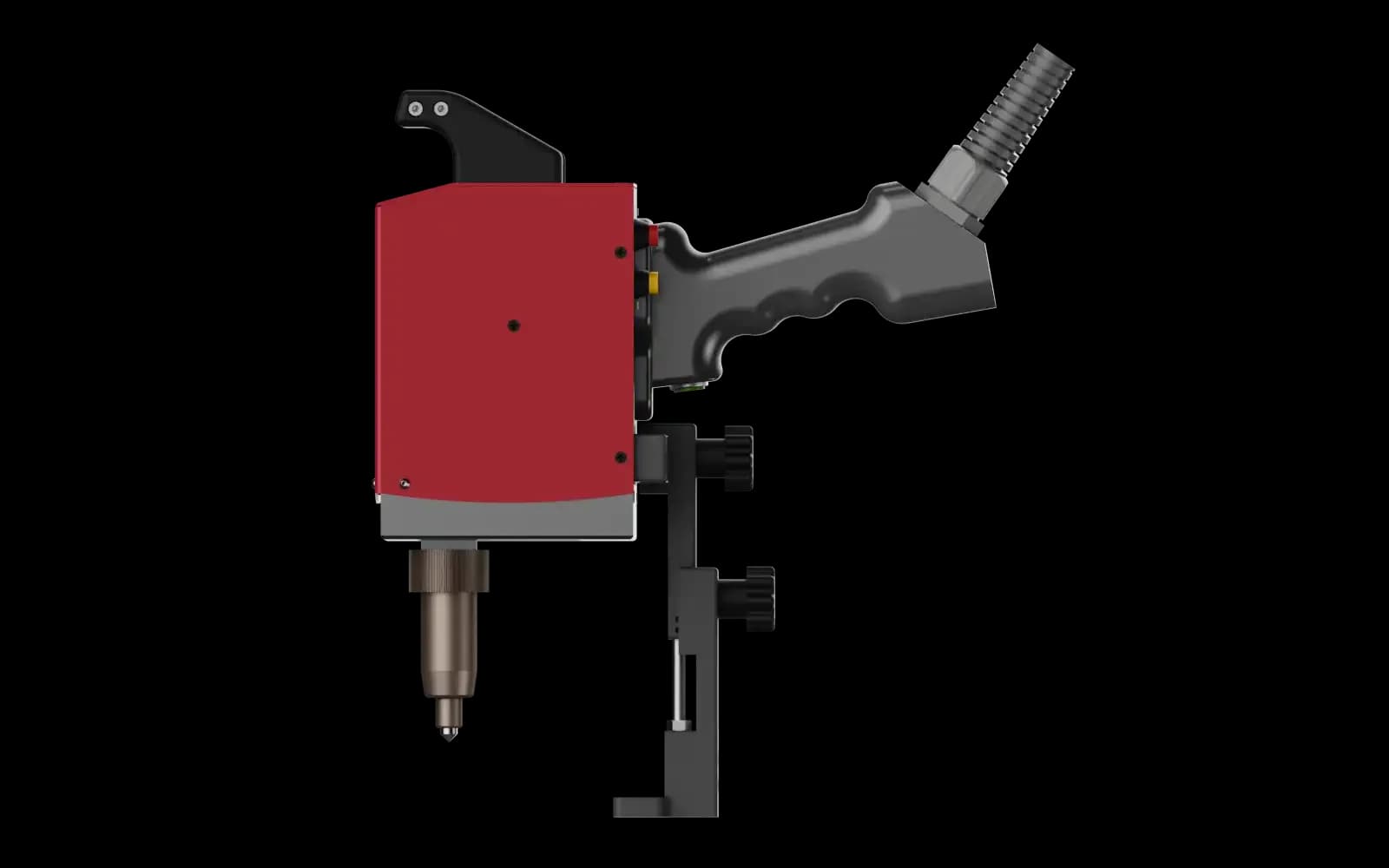

Dotpeenator™ PR54 Lightweight Portable Dot Peen Marking Machine

One of the biggest traceability challenges encountered in production areas is the permanent marking of parts that have been assembled or are in confined spaces where standard handheld devices cannot fit due to their geometry. Large and cumbersome portable machines cannot access deep channels, flange interiors, secluded chassis corners, or overhead pipelines. The Dotpeenator™ PR54 Lightweight and Confined Space Portable Dot Peen Marking Machine has been specifically developed to provide flawless traceability even in the most inaccessible locations, thanks to its compact size and lightweight construction.

Featuring one of the lightest and most compact body architectures in its class, the PR54 minimizes physical fatigue experienced by the operator during long shifts and working at challenging angles. With its optimized 50x40 mm (or similarly confined space) compact marking window and ergonomic design for one-handed grip, the device can be effortlessly secured to the tightest compartments, small flange surfaces, or the interiors of valve bodies. The powerful pneumatic carbide needle mechanism generates impact energy that, despite its minimal size, leaves permanent marks on the metal surface. Thanks to these deep micro-impacts, the markings are flawlessly readable by part tracking cameras (OCR), even after demanding industrial processes such as heavy painting, sandblasting, oiling, or rusting.

The device's internal components and linear guides are fully protected by stainless steel dust covers to prevent contamination from metal shavings, oil, and dust in dusty foundry and machining environments. This ensures uninterrupted, cost-effective, and long-lasting 24/7 operation, even in the most aggressive subcontracting environments.

Technical Highlights and Advantages

• Ultra-Lightweight and Compact Body: Featherweight construction that maximizes operator comfort and eliminates physical strain in overhead operations, construction sites, and shipyards.
• Geometric Advantage for Tight Spaces: Flawless accessibility to narrow pipe interiors, curved surface corners, deep valve channels, and small label slots where large devices are impossible to fit.
• Deep and High-Contrast Pneumatic Impacts: Needle mechanism offering high impact power despite its compact body, enabling permanent serial numbers, logos, and 2D DataMatrix codes even on hardened metals and raw casting surfaces.
• Maximum Axis Protection: Special sealing and rigid protection barriers prevent dust and industrial particles from damaging device axes in challenging factory environments. Intelligent Control Network Integration: Fully integrated with Dotpeenator CO9 and SA14 control units, providing the flexibility to process automatically increasing serial numbers, shift codes, and instant date templates flawlessly in seconds.
