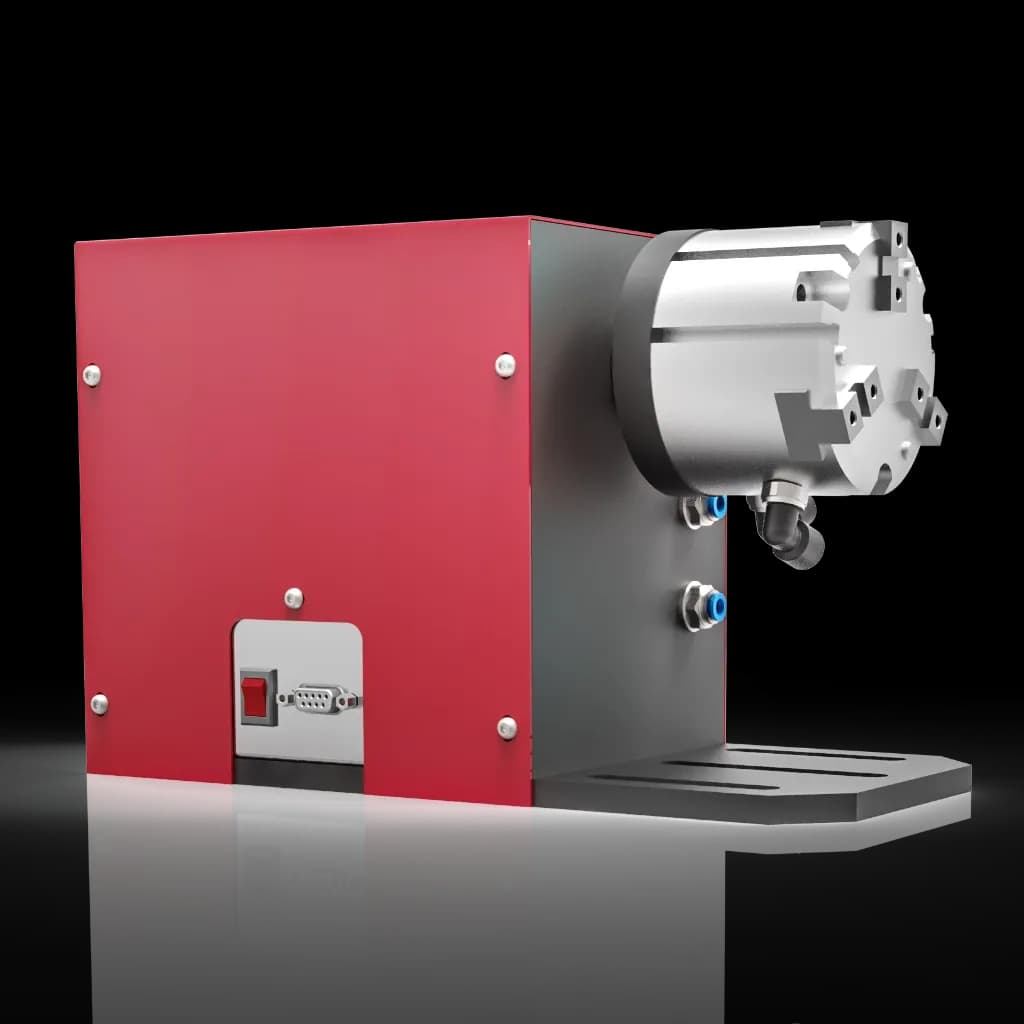

Dotpeenator™ R100 Pneumatic Divider Rotary Axis

The Dotpeenator™ R100 Pneumatic Rotary Axis Divider is a high-precision 4th axis (rotary) module designed to integrate with dot-matrix marking machines. It enables permanent radial marking of shafts, pipes, flanges, valves, and all other circular or cylindrical surface parts. Unlike traditional manual chuck dividers, the R100 features an automatic pneumatic clamping and releasing mechanism powered by air pressure. This eliminates the need for the operator to use a chuck wrench with each part change, minimizing part clamping and unclamping times. It significantly reduces cycle time, particularly in high-volume series production lines and contract marking processes, maximizing factory efficiency.

Key Features

• Pneumatic Clamping Technology: The pneumatic chuck system, triggered by a foot pedal or software command, securely clamps and releases workpieces in seconds.
• High Precision and Zero Backlash: Thanks to the specially designed zero-backlash transmission mechanism and high-torque stepper motor, it prevents slippage during circular rotation and prevents overlapping of characters.
• Full Hardware Integration: Fully compatible with Dotpeenator™ control units (SA14 built-in controller or DP6 PC-based control boards); easily calibrated via software thanks to its plug-and-play architecture.
• Wide Diameter and Weight Capacity: Thanks to its 100 mm chuck diameter and hardened jaw structure that can be used up or down, it can rotate even heavy industrial parts of different diameters smoothly. Industrial Protection: Resistant to dust, burr, and oil-intensive machining and workshop environments, the sealed chassis structure is ideal.

Applications

All circular part marking operations in the automotive axle and shaft manufacturing, defense industry pipeline components, hydraulic/pneumatic valve bodies, fittings, couplings, and metal pipe processing sectors.
