Dotpeenator™ R80 Rotary Axis Divider

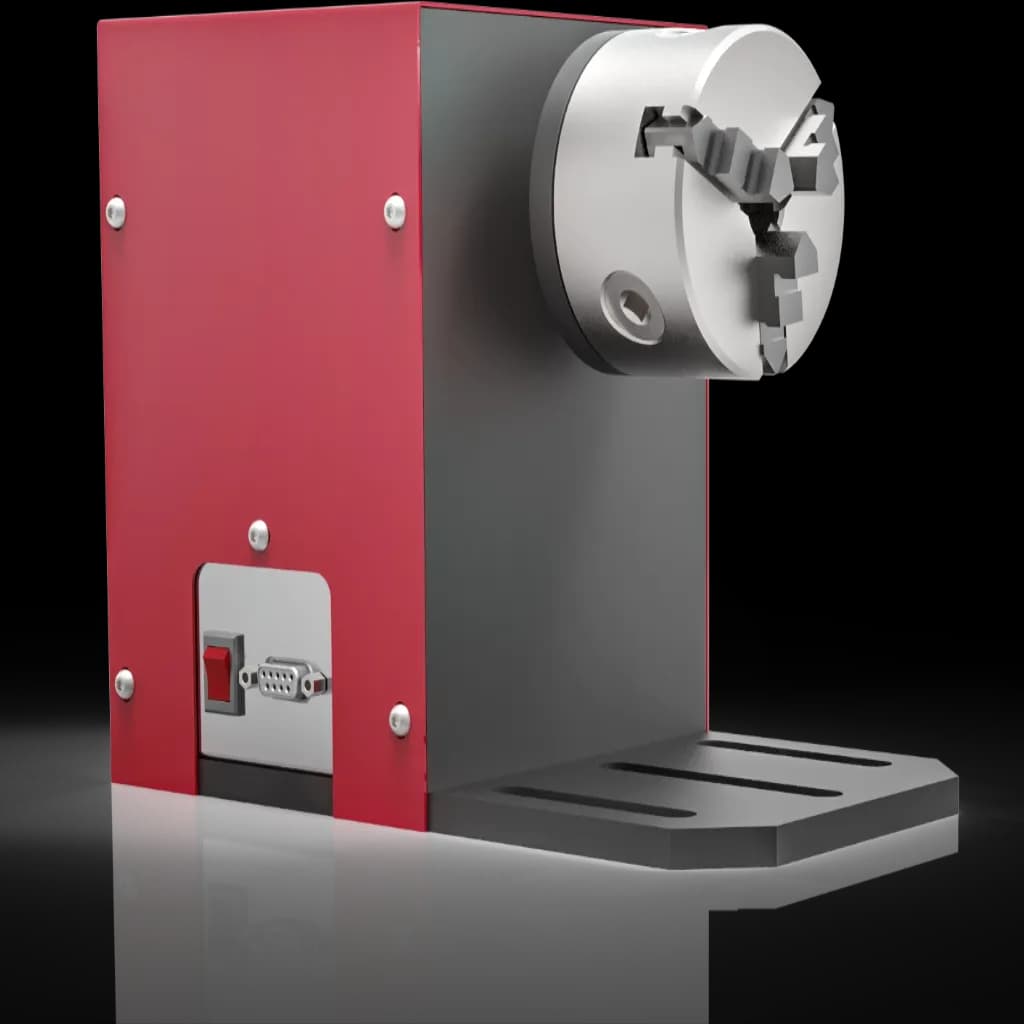

The Dotpeenator™ R80 Rotary Axis is a high-precision rotary 4th axis module specifically designed for permanent and axial marking of cylindrical, circular, or tubular parts. It enables flawless rotary marking of shafts, pipes, flanges, fittings, couplings, and all other round industrial components. Fully compatible with all Dotpeenator™ dot-matrix marking machines, the R80 is equipped with an 80 mm industrial mechanical chuck located on its housing. The device is mounted very quickly and easily into the standard T-slot channels on the cast work tables of desktop marking machines using the included T-nuts and mounting screws. Thanks to its powerful stepper motor and precise transmission mechanism, it operates simultaneously with the Dotpeenator™ control unit and its built-in software. The rotary axis, automatically indexed via the software, prevents skipping during marking and ensures clear and legible results by preventing character overlap.

Key Features

• 80mm Mechanical Chuck: Manual chuck system with hardened foot structure that can be used upside down for securely fixing circular parts such as pipes or shafts.
• Full Hardware Compatibility: Plug-and-play infrastructure with 9-pin serial port architecture and power/communication cable with shielded metal connectors at both ends.
• Practical Installation: Compact chassis design that takes up little space and can be fixed to T-slot work tables in minutes with T-nuts.
• Synchronized Operation: Ability to engrave text, serial numbers, or logos on circular surfaces seamlessly by moving in full synchronization with the X/Y axes of the marking head after activation with the on/off switch on the device. Durable Construction: Housing resistant to harsh factory and workshop environments with high levels of machining, dust, burrs, and oil.

Optional Features:

It can be enhanced with an optional tailstock or V-shaped support bearing (V-holder) to enable long and heavy shafts or pipeline components to be rotated safely and securely from both ends without oscillation.
