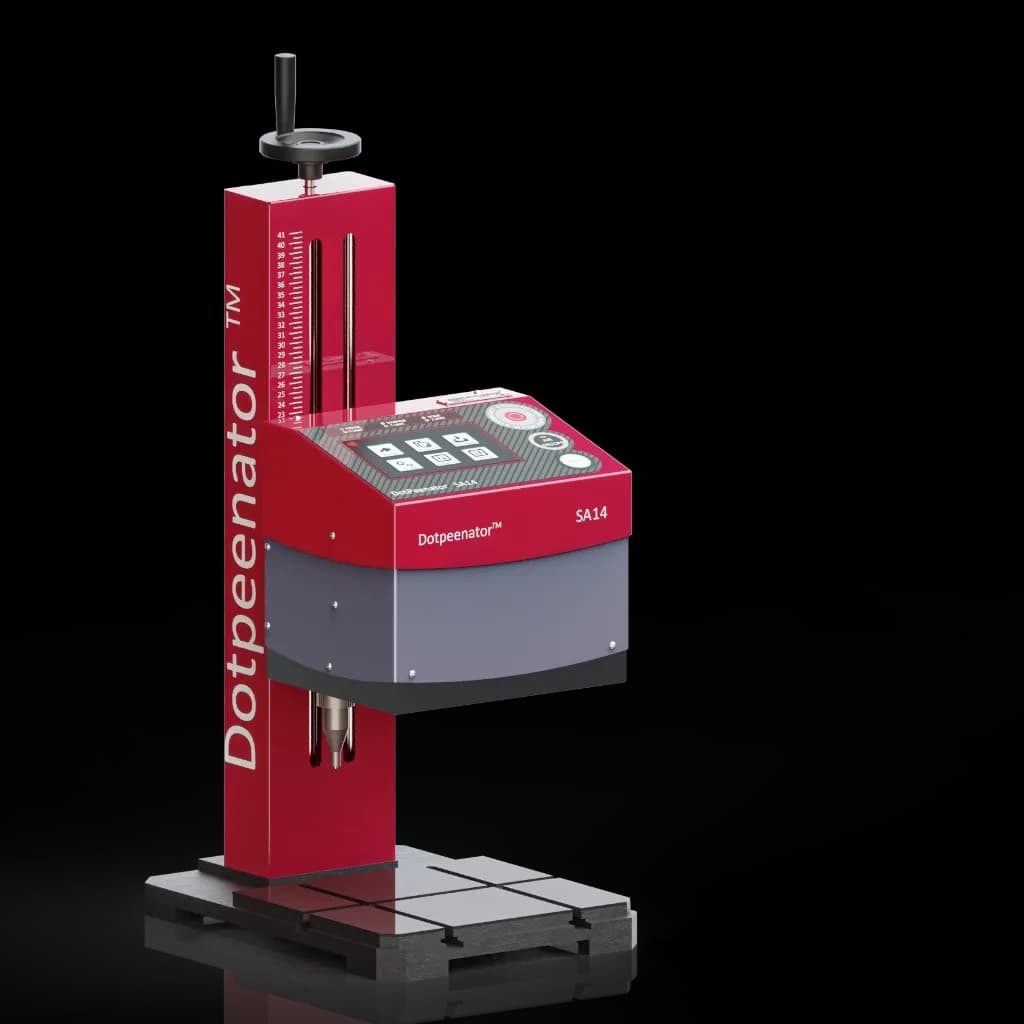

Dotpeenator™ SA14 Desktop Dot Peen Marking Machine

The Dotpeenator™ SA14 Desktop Dot Peen Marking Machine is a standalone, high-performance benchtop system for industrial part traceability and permanent marking operations, requiring no external computer. With a large 170mm x 120mm marking area and a durable chassis suitable for heavy-duty use, it operates seamlessly and with high precision in factory and workshop environments.

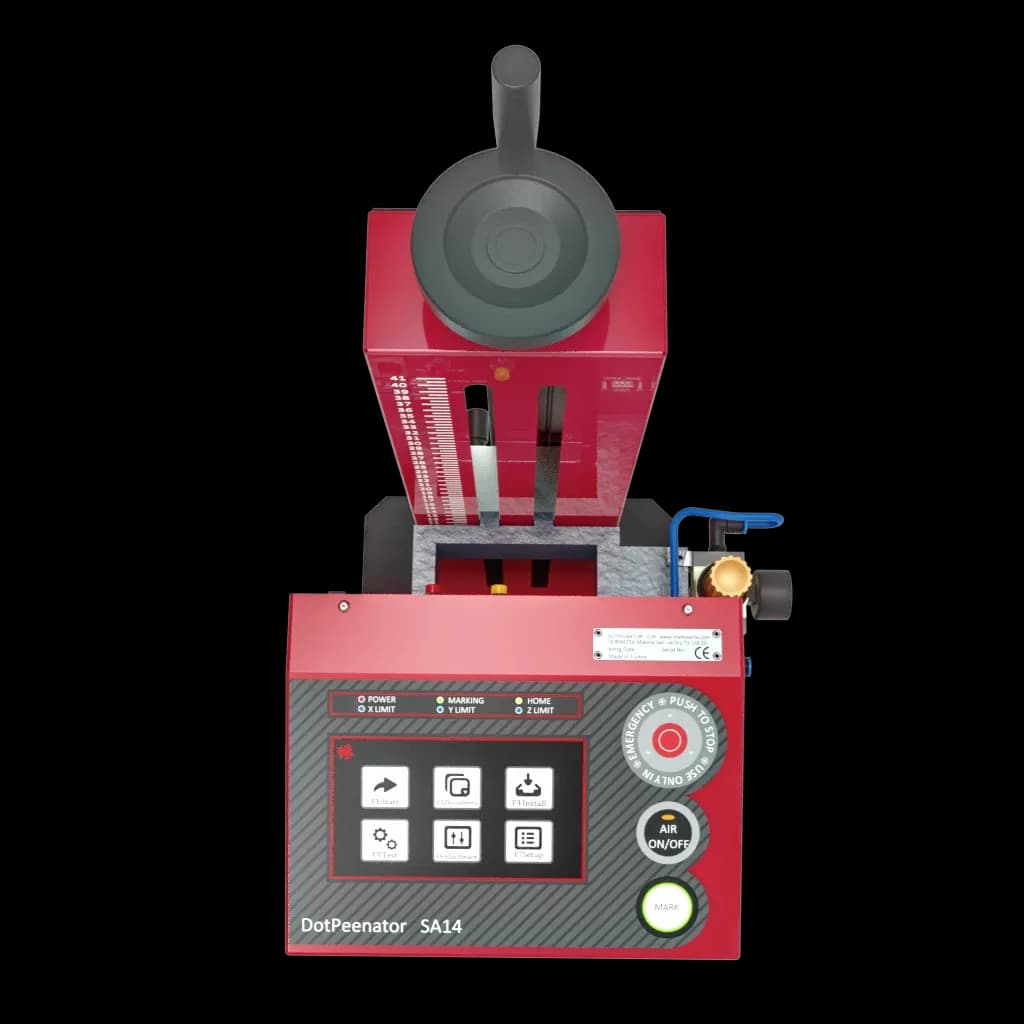

The built-in Linux-based SA14 control unit and 7-inch touchscreen color TFT display offer users a highly practical and intuitive interface based on the "What You See Is What You Get" principle. It can also be used with optional keyboard, mouse, and barcode scanner connections. Thanks to support for pneumatic or electric pin technology and a pin type selection button, it leaves deep and legible marks on a wide range of materials (steel, aluminum, stainless steel, brass, and hard plastics), from smooth to rough or uneven surfaces.

Key Features

• Marking Area: 170mm x 120mm wide working area
• Integrated Control: Linux-based SA14 controller and Dotpeenator™ software that does not require a computer
• Display: Easy programming with a 7-inch Touchscreen Color TFT Display
• Wide Marking Capabilities: Serial number, chassis number, 2D QR code (DataMatrix), date, time, shift coding, custom font creation, and logo/graphic marking with PLT/WMF/SLG/EMF extensions
• Connectivity Ports: Flexible data transfer and peripheral support with 3 USB ports and 1 RS232 port
• Robust Housing: T-slot cast table, X/Y/Z limit warning lights, and LED illuminated working area
